Precision Cross Sliding Table BF-30 700*180mm Table

SKU: BM30278

We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price

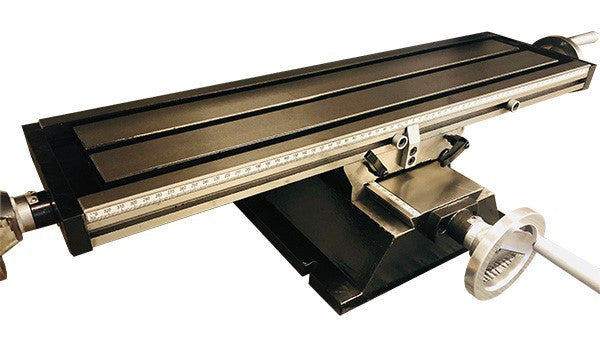

This BM30278 Cross Slide Table has a 700*180mm table, with a 480mm travel in X axis and 175mm travel in Y axis. This compound table is well machined, and the travel is smooth and accurate, it enables every vice to slide at two directions. This is a precision model, the dial indexed handle in 0.05mm graduation.

This cross slide table is ideal for repetitive multi axis work, it will highly reduce the set up time. The construction is sturdy and suitable for heavy duty work. Can be used on BF-30 milling head (mounting holes needs drilling).


  • Sturdy construction for heavy duty work
  • Table Size 700*180mm, 0.05mm graduation;
  • Precise and smooth slide action, slide range X 480mm* Y 175mm;
  • Ideal use on milling machine and lathe

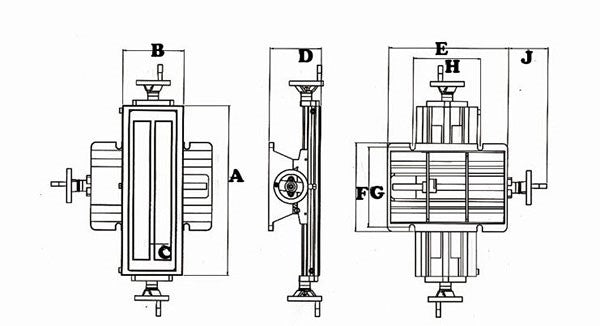

      Model BM30278
      A 700 mm
      B 180 mm
      C 12 mm
      D 151 mm
      E 355 mm
      F 277 mm
      G 245 mm
      H 220 mm
      J 116 mm
      X-travel 480 mm
      Y-travel 175 mm
      N.W./G.W 55/60 kg
      Package mm 860*460*230
