Precision Cross Sliding Table BF-16 400*120mm Table

SKU: BM30273

We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price


This BM30273 Cross Slide Table has a 400*120mm table, with a 220mm travel in X axis and 160mm travel in Y axis. This compound table is well machined, and the travel is smooth and accurate, it enables every vice to slide at two directions. This is a precision model, the dial indexed handle in 0.05mm graduation.

This cross slide table is ideal for repetitive multi axis work, it will highly reduce the set up time. The construction is sturdy and suitable for heavy duty work. Can be used on BF-16 milling head (mounting holes needs drilling).


  • Sturdy construction for heavy duty work;
  • Table Size 400*120mm, 0.05mm graduation;
  • Precise and smooth slide action, slide range X 220mm * Y160mm;
  • Ideal use on milling machine and lathe;

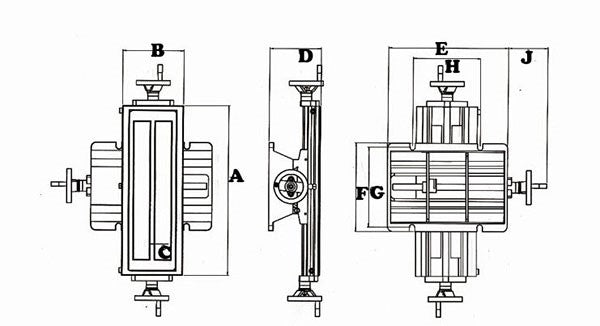

    Model BM30273
    A 400mm
    B 120mm
    C 10mm
    D 145mm
    E 282mm
    F 222mm
    G 200mm
    H 160mm
    J 110mm
    X-travel 220mm
    Y-travel 160mm
    N.W./G.W 23/27kg
    Package mm 490*380*200
