Price:
We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price
Contact us

Description

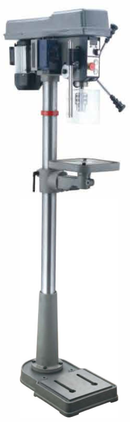

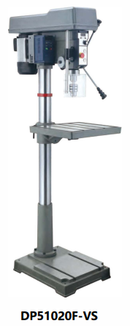

New design semi-industrial Drill Press with Variable Speed DP-VS Series - Floor Type Models

 Swing ranging from 13" to 20" (330mm to 510mm)

Features:

  • Unlike other common drill presses that use mechanical unit to change working speed, our DP-VS series machines adjust working speed by a unique design VFD/Inverter that controls the input frequency without compromise on output power.
  • With the VFD/Inverter, the machine can ensure more precise speed with low energy cost and long service life.
  • Front control panel features 12V low voltage start-up, much safer during operation.
  • Digital display on working speed, emergency stop button, LED light, cross laser alignment & auto power-off protection guard.
  • Two speed gears multi-wedge pulley with poly V-belt provide wider torque force range and less vibration.
  • Solid cast iron body, powder coating multi-processing surface, fine grinding finish on worktable and headstock hole.
  • Low noise level, high precision, good rigidity, solid quality, new design novel-looking.



Specifications:

Model DP33016F-VS DP38016F-VS DP43016F-VS DP51020F-VS
Drill Capacity(mm) 16 20 25 32
Chuck Capacity(mm) 16 16 16 16
Swing（mm)  330 380 430 510
Distance - Spindle to Column(mm) 165 190 215 255
Spindle Taper MT2 MT2 MT2 MT3
Speed RPM (50Hz) 2(0-700,0-3000) 2(0-700,0-3000) 2(0-700,0-3000) 2(0-700,0-3000)
Spindle Travel  80 80 80 120
Column Diameter(mm) 73 73 80 92
Rack & Pinion yes yes yes yes
Poly V-belt yes yes yes yes
CE Chuck Guard yes yes yes yes
Max Distance - Spindle to Table 700 700 685 680
Max Distance - Spindle to Base 1190 1190 1175 1170
Base Size  545*330 545*330 545*330 575*450
Base Material cast-iron cast-iron cast-iron cast-iron
Table Size(mm) 270*270 270*270 325*325 475*425
Table Tilt yes -45/45° yes -45/45° yes -45/45° yes -45/45°
Table Material cast-iron cast-iron cast-iron cast-iron
LED Light   yes yes yes yes
Laser Light yes yes yes yes
Inverter (vector control) yes yes yes yes
Motor(w)/S1 600 600 1100 1500
Height(mm) 1630 1630 1635 1710
NW/GW(kg) 63/66 72/75 91/96 122/127
Packing Size(mm) 1430*510*256 1430*510*256 1410*540*250 1450*653*333
Loading Qty 20' Container 160 160 144 93
