Description

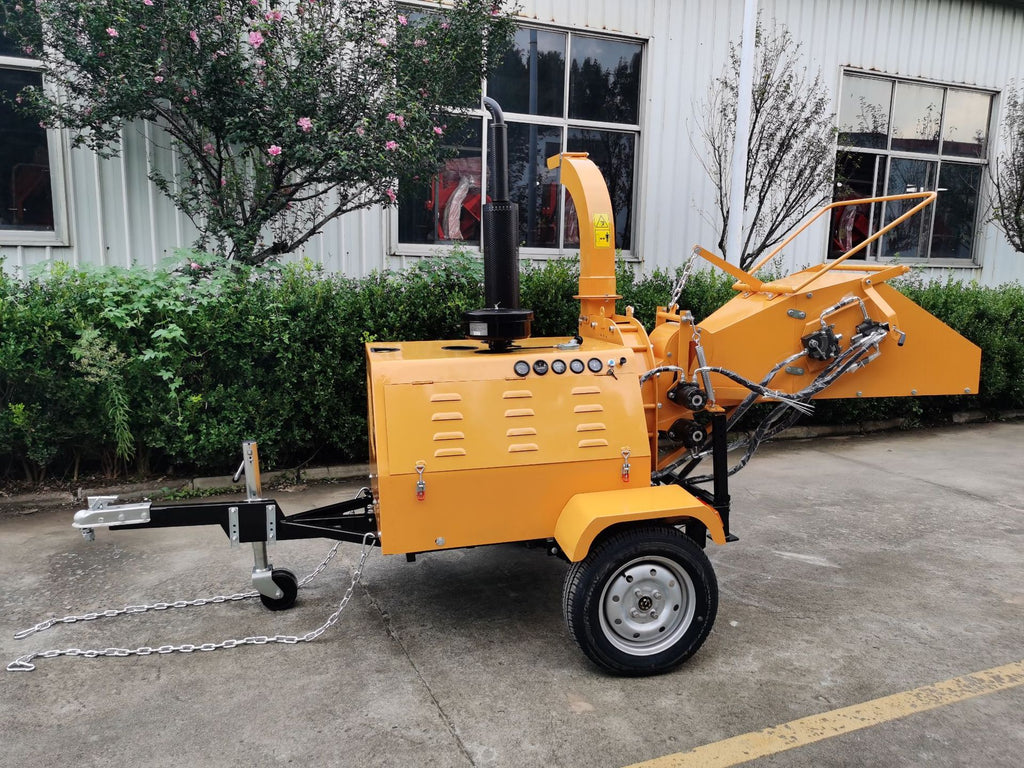

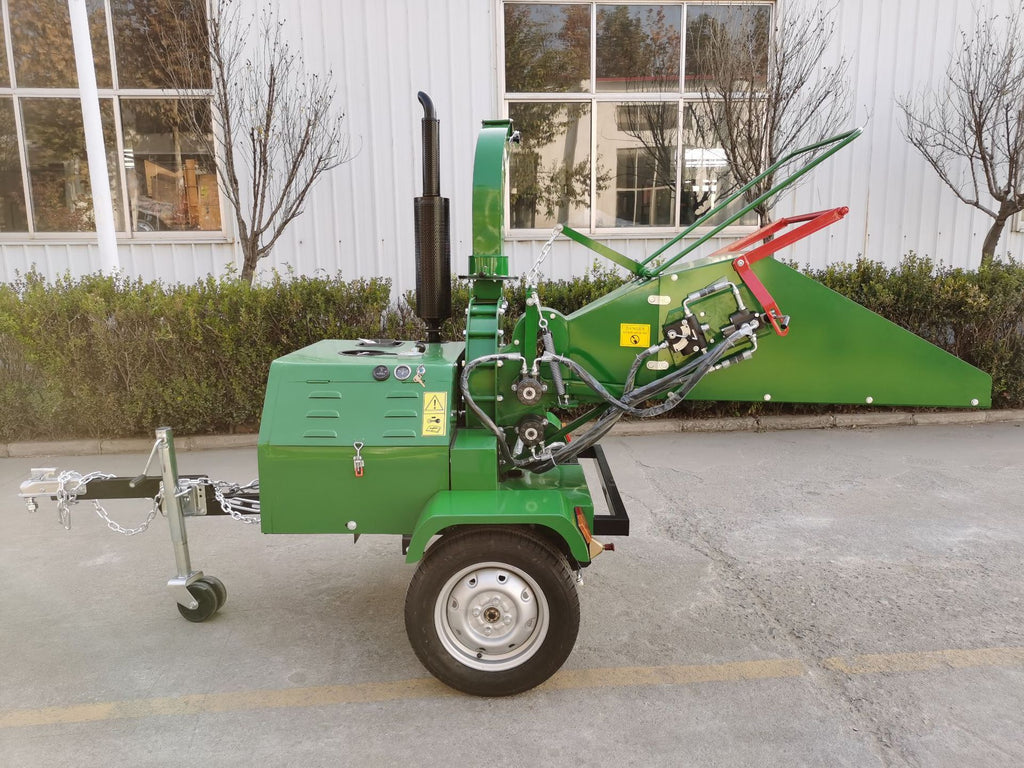

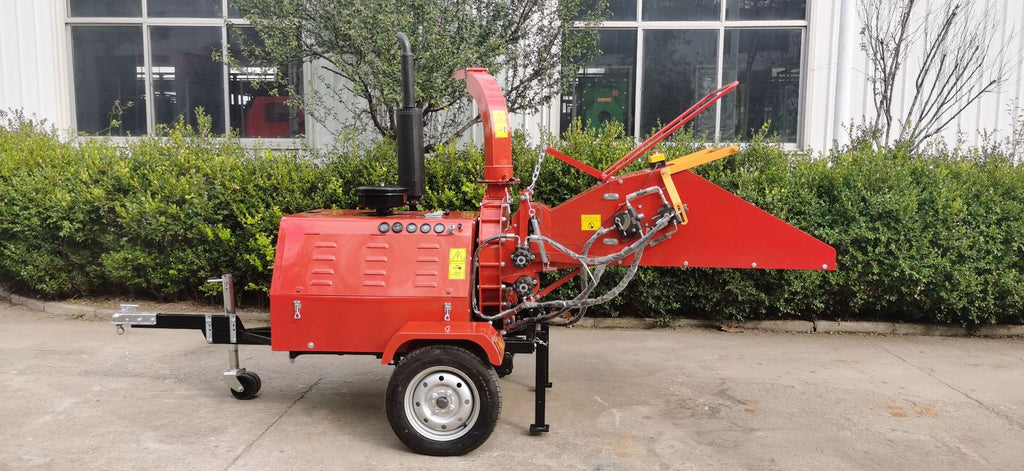

200mm Diesel Wood Chipper with Hydraulic Auto Feed System
200mm Wood Chipper, Hydraulic Feed, Road Towable:
-
40/50hp diesel engine with electric start;
-
Hydraulic auto feed system;
-
Up to 200mm chipping capacity;
-
Heavy Duty 600mm Disc.
Specifications:
| Model | W-40H | W50-H |
| Power | 40hp, 4 Cylinder, 2200rpm, e-start |
50hp, 4 Cylinder, 2200rpm, e-start |
| Chipping Capacity | 200mm | 200mm |
| Disc Diameter | 600mm | 600mm |
| Disc Weight | 57kg | 57kg |
| Disc RPM | 1100 | 1100 |
| Number of Blades | 2/4 | 2/4 |
| Blade Type | 65mn/A8 | 65mn/A8 |
| Hopper Opening | 200*220mm | 200*220mm |
| Feed System | Hydraulic Feed | Hydraulic Feed |
| Overall Size(mm) | 3575*1505*1930 | 3575*1505*1930 |
| Packing Size(mm) | 1800*1450*1350 | 1800*1450*1350 |
| Weight(kg) | 827 | 835 |
