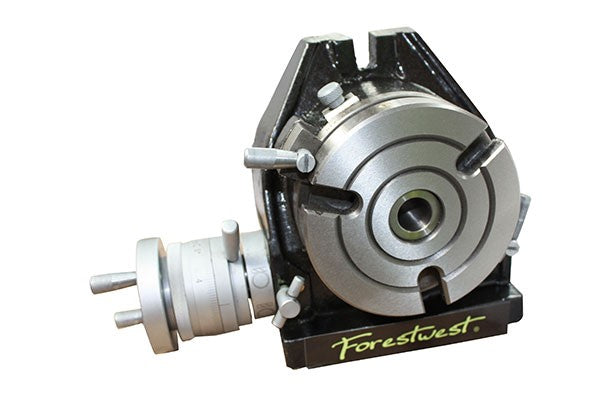

6" Horizontal & Vertical Rotary Table

SKU: BM30266

We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price



  • Sturdy construction for heavy duty work;
  • 150mm round table;
  • High precision ground and engineered;

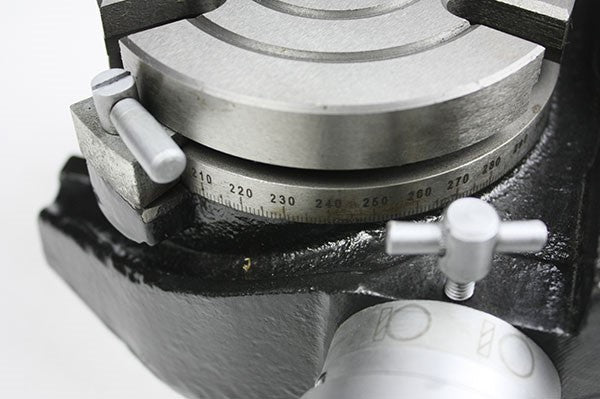

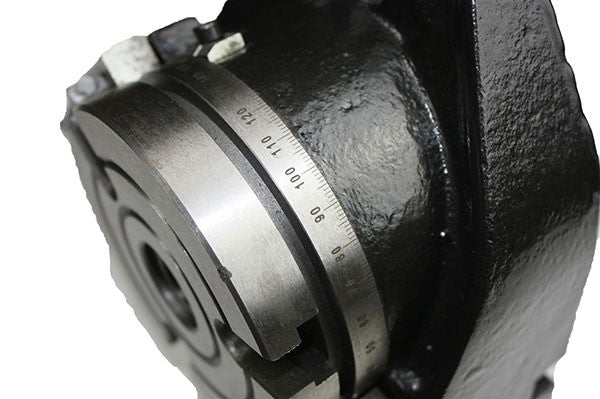

  • Work table scaled to 360 degrees;
  • 1:90 Transmission ratio;


    Model BM30266
    Diameter of table 150 mm
    Morse taper of the center hole 2#
    Height of center for verti. Mounting 100 mm
    Width of the T-slot 12 mm
    Adjacent angle of table T-slot 90°
    Width of locating key 14 mm
    Module of the worm gear 1
    Transmission ratio of the worm gear 1:90
    Graduation of the table 360°
    Rotating angle of table with revolution of the worm
    Minimum reading of the vernier 10"
    Indexing accuracy 60"
    Max.bearing(with table Hor.) 100 kg
    Max.bearing(with table Vert.) 50 kg
    Packing size 435×435×220 mm
    N.W/G.W 15/16 kg
