Description

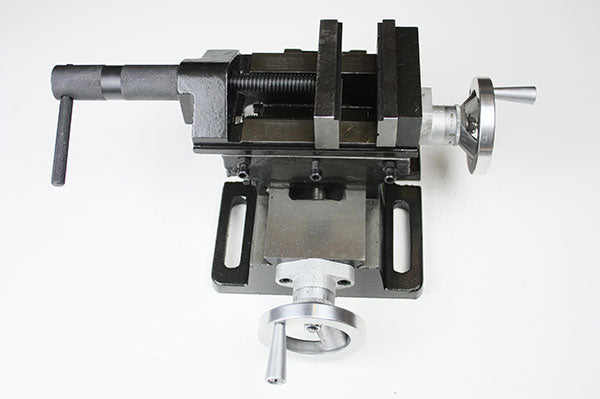

This BM30110 4" Cross Slide Vice is capable of traveling at two directions. The jaw width is 100mm. The cross slide vice can travel 110mm at X axis, and 70mm at Y axis. This compound sliding vice is well machined with smooth travel. It is a precision model, with positive positioning in two coordinates lets you move the piece accurately. This is an ideal vice for accurate drilling and milling.
Features:
- A cross slide capability in X and Y axis, smooth travel,
- Sturdy construction made of cast iron,
- Well machined for precision use,

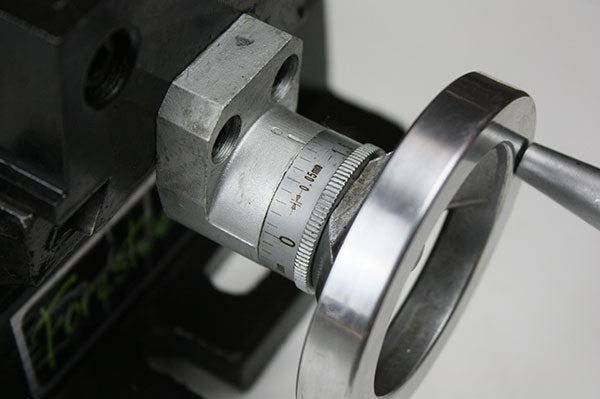

- Jaw opens up to 98mm, 0.05mm graduation.
Specifications:
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| 218mm | 175mm | 140mm | 105mm | 184mm | 100mm |
| G | H | J | K | X Travel | Y Travel |
| 156mm | 34mm | 85mm | 100mm | 110mm |
70mm |
| Model | 4" Precision Cross Sliding Vice BM30110 |
|---|---|
| Jaw width | 100 mm |
| Jaw opening | 98 mm |
| N.W./G.W | 10/11 kg |
| Packing size | 400*350*220 mm |
