Description

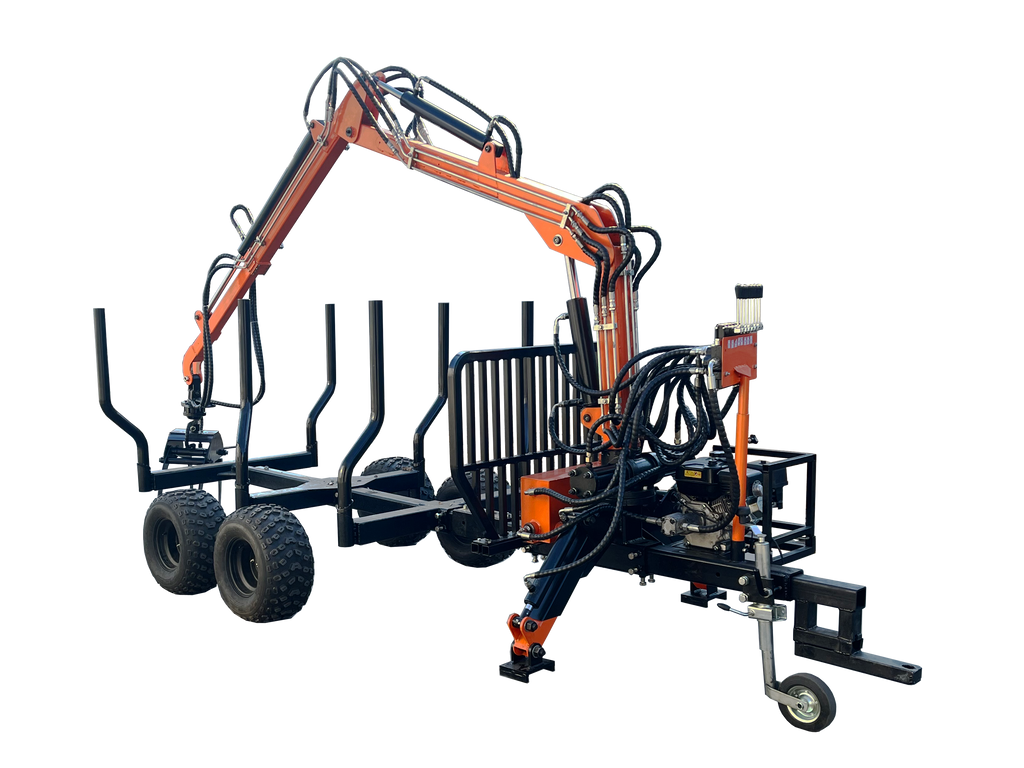

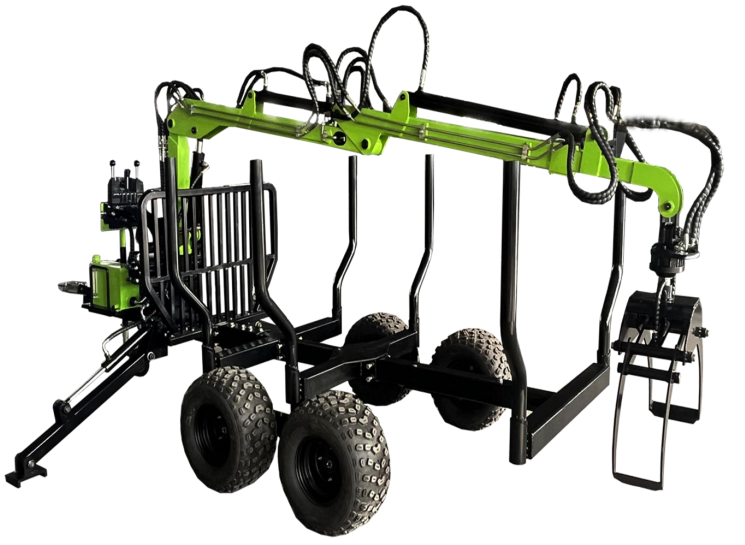

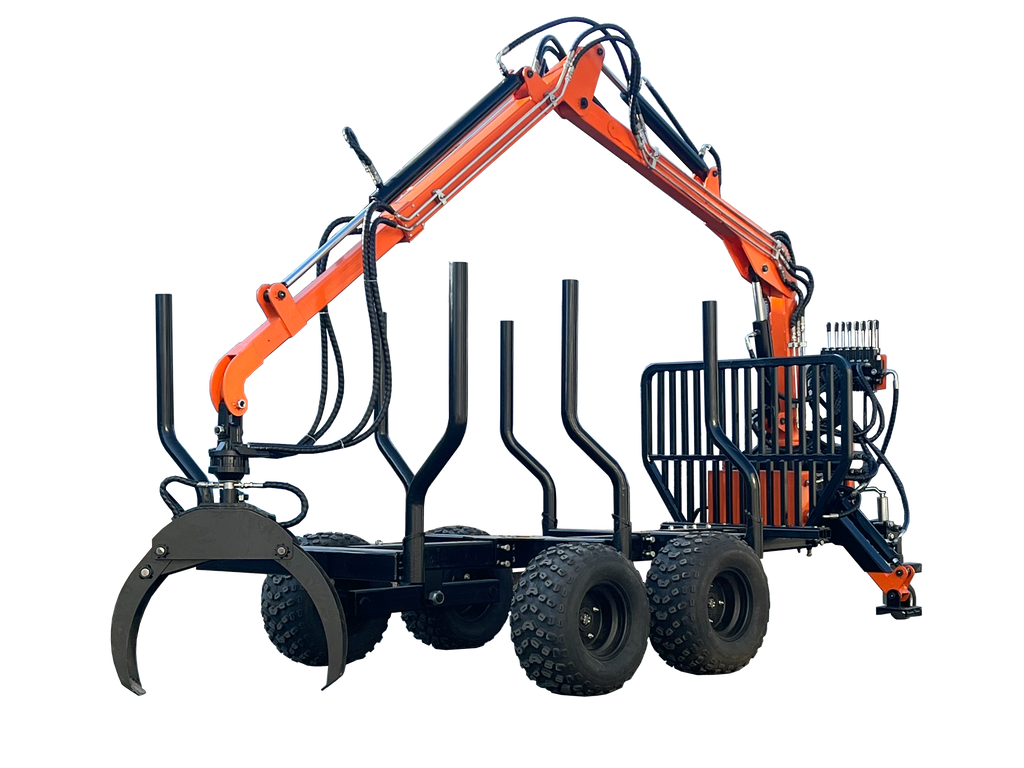

2ton & 4ton ATV Timber Log Trailer with Crane, Hydraulic Log Loading Trailer
1.Lightweight, strong, highly maneuverable and designed to be very stable even when fully loaded
2.Easy to operate by joystick.
3.Can be attached to ATV, truck, car or tractor.
4. High reliability ,Simple hydraulic and mechanical systems, easy to use and maintain.
5.High quality laser cut parts.
| Product | 2T Log Trailer | 4T Log Trailer |
| Model | BM11017 | BM11019 |
| Engine | 6.5HP/5KW, E-start/pull start, Gasoline Engine |
6.5HP/5KW, E-start/pull start, Gasoline Engine |
| Oil Pump | 16MPa, 2.7ml/r | 16MPa, 2.7ml/r |
| Length of Crane Arm | 4.3m | 5m |
| Max. Lfiting Height | 4.6m | 5.5m |
| Lifting Capacity of Max. Arm Reach | 200kg | 300kg |
| Swing Angle | ±90° | ±90° |
| Fuel Tank | 4L | 4L |
| Max. Loading Capacity | 2000kg | 4000kg |
| Max. Remote Control Distance | 30m | 30m |
| Hydraulic Oil Tank | 12L | 12L |
| Wheel | 23"x8.5"-12 | 26"x12"-12 |

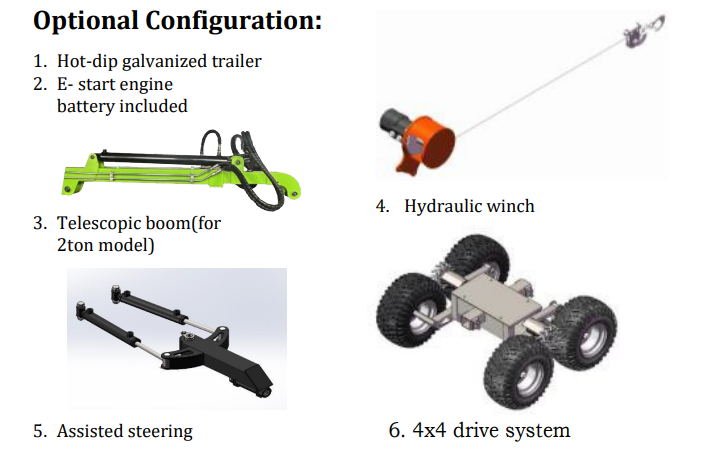

| 4x4 with Automatic | Optional | Optional |
| Working Temperature | -30℃ to 80℃ | -30℃ to 80℃ |
| Weight | 815/928kg | 844/962kg |
| Overall Dimension | 390x280x180cm | 490x270x220cm |
| Packing Size | 230x120x75cm | 230x127x89cm |
| Loading Quantity of 20/40GP | 12/30PCS | 8/18PCS |
