Description

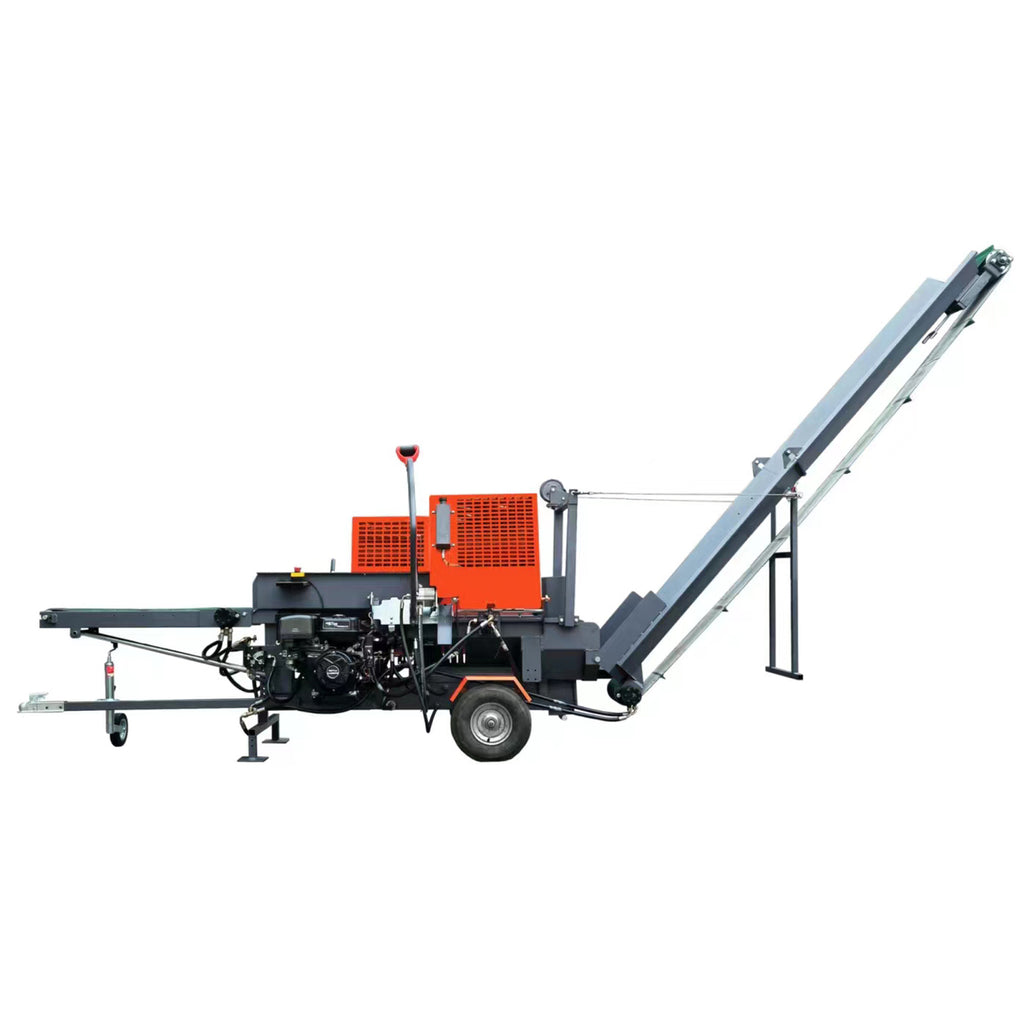

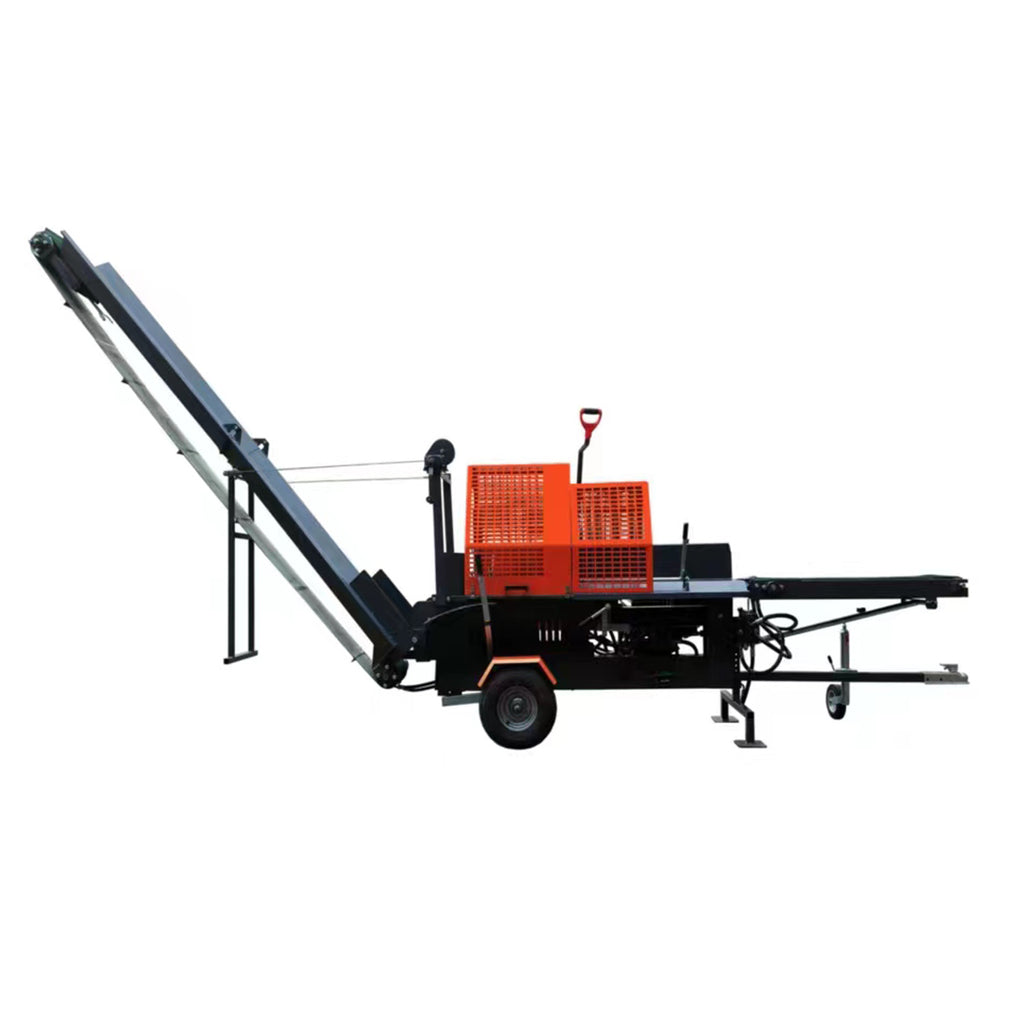

From long round wood to fully split log, this 20T wood processor combines the functions of a log cutting saw/chainsaw and log splitter, that can deliver firewood processing job very easily.

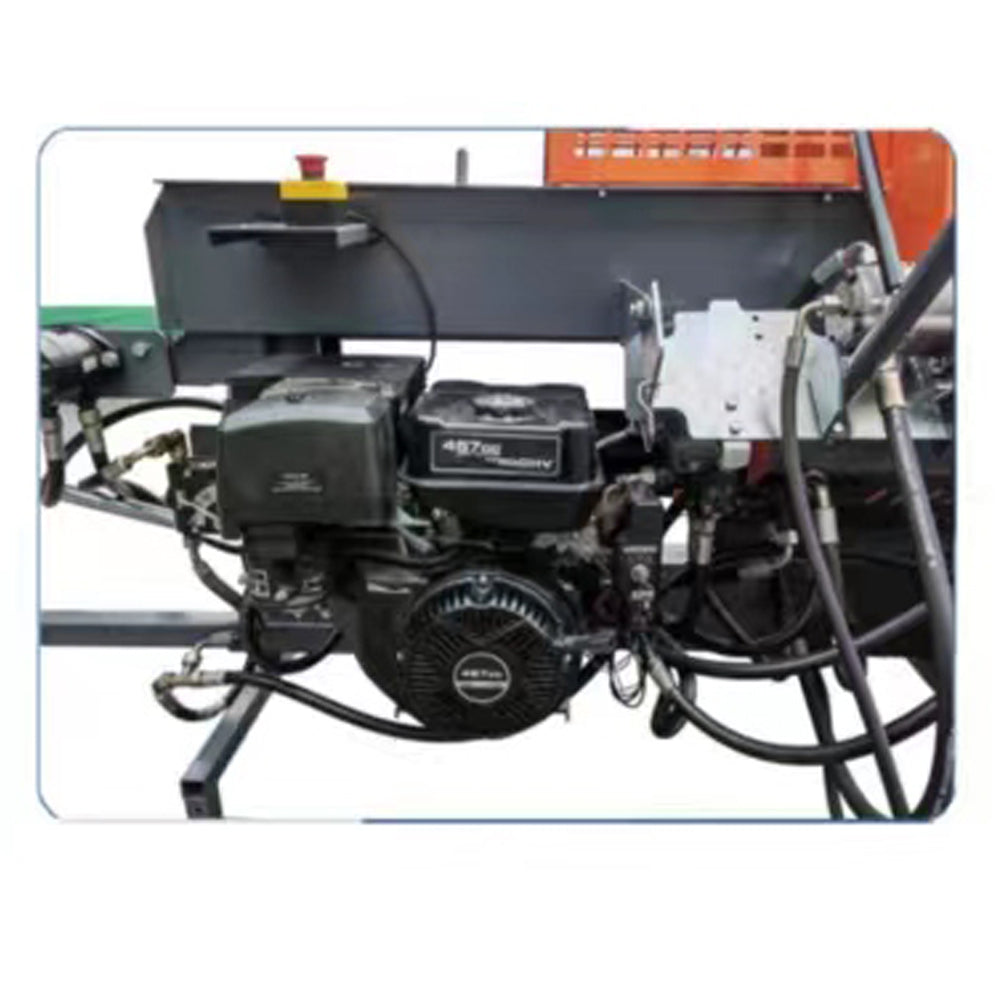

It's powered by a 14hp Petrol E-Start Engine by default, and can be customized with different brands motor on request.
With the heavy duty tow bar and big pneumatic tires, the wood processor can be maneuvered around easily.
It's powered by a 14hp Petrol E-Start Engine by default, and can be customized with different brands motor on request.

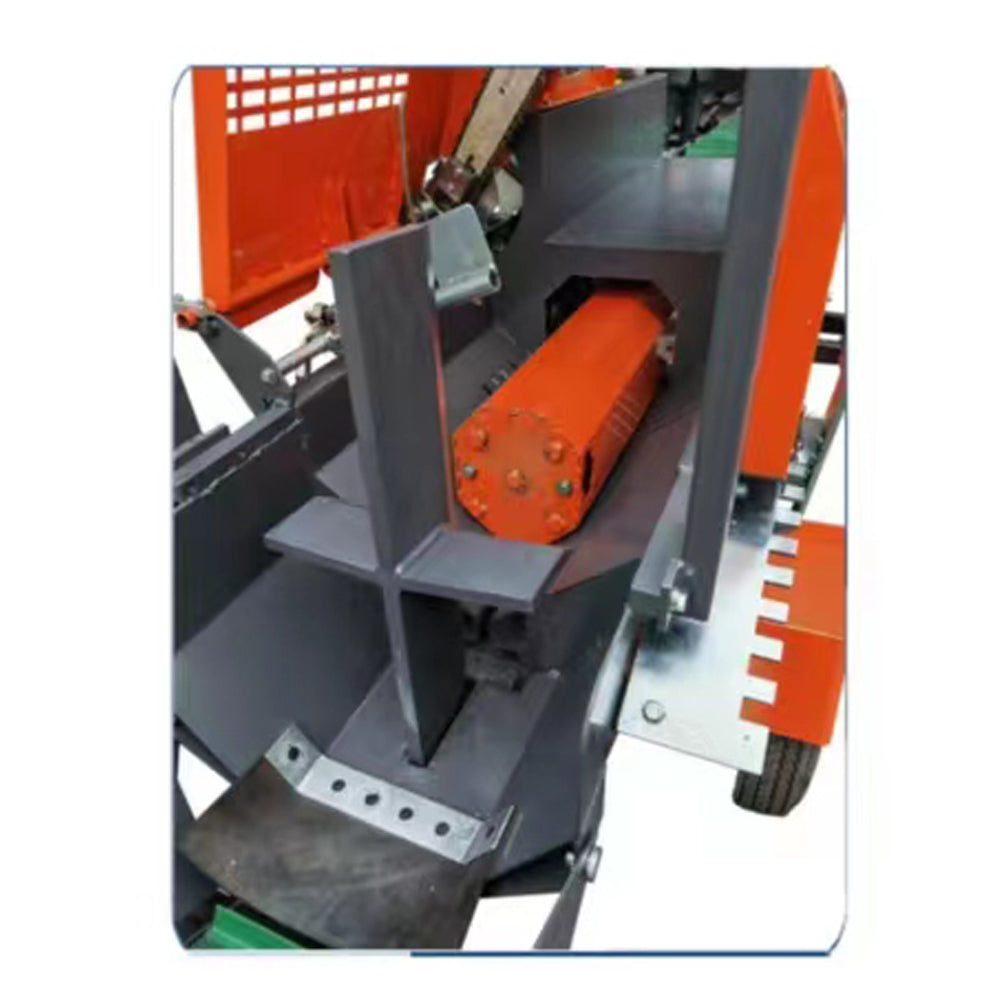

Thechainsaw capacity goes up to 18". After cutting, the hydraulic log splitting system can handle log up to 360mm in diameter and 620mm in length. The 4-way splitting wedge can split the log into 4 pieces efficiently, after which the height adjustable belt conveyor will delivery the split firewood to the end.
With the heavy duty tow bar and big pneumatic tires, the wood processor can be maneuvered around easily.
| Engine Power | 14HP Kohler/15HP Rato |
| Log Splitting Diameter | 360mm |
| Log Splitting Length | 620mm |
| Chainsaw Hydraulic Motor | 30L/min, 4000RPM |
| Chainsaw Cutting Diameter | 350mm |
| Hydraulic Cylinder Diameter | 4'' |
| Wheel Diameter | 18'' |
| Packing Size | 2280x910x1200mm |
| Weight | 540kg |
