20T 14HP Petrol Wood Processor Combination Wood Processing Machine

SKU: Wood Processor

We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price

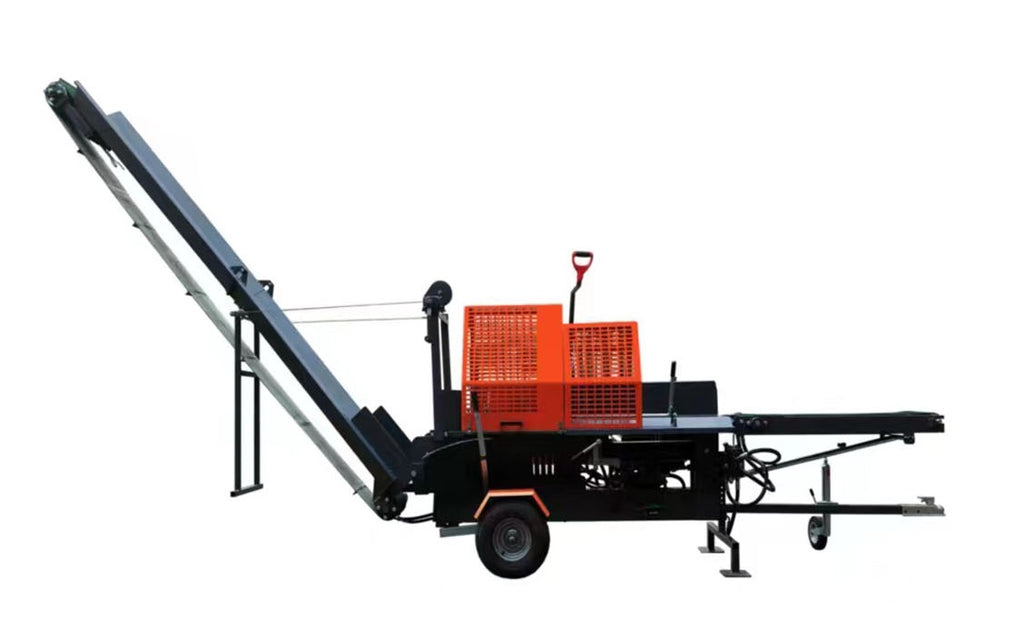

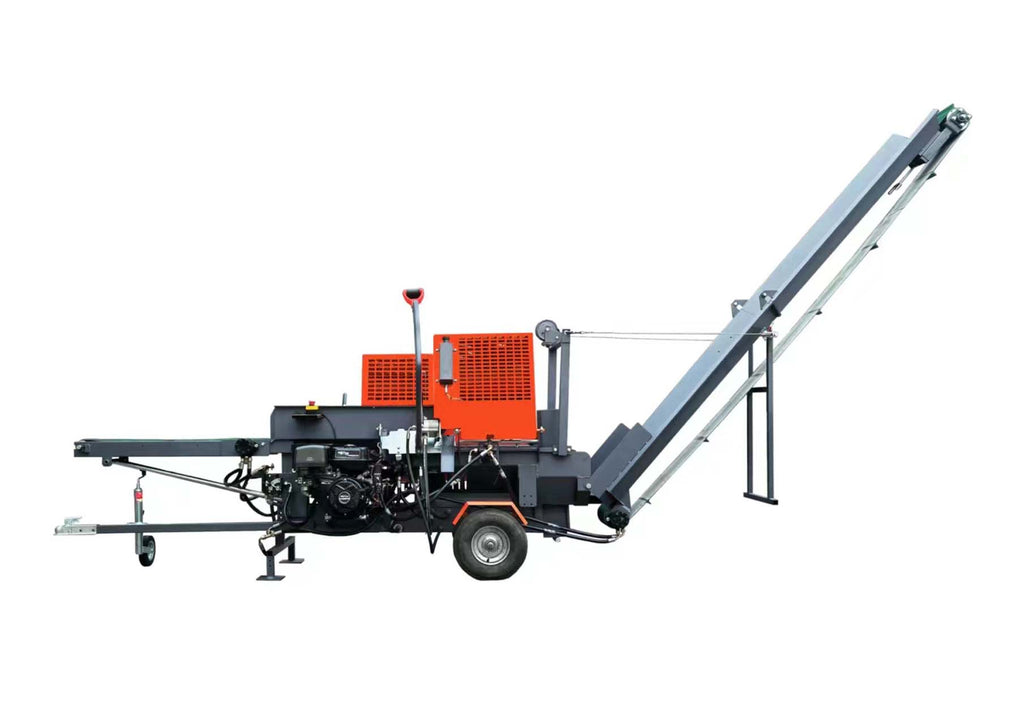

From long round wood to fully split log, this 20T wood processor combines the functions of a log cutting saw/chainsaw and log splitter, that can deliver firewood processing job very easily.

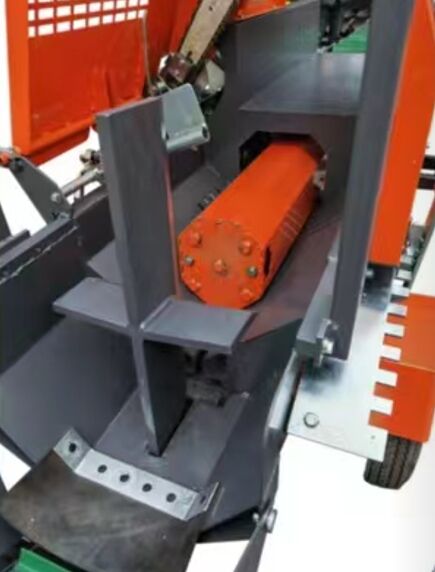

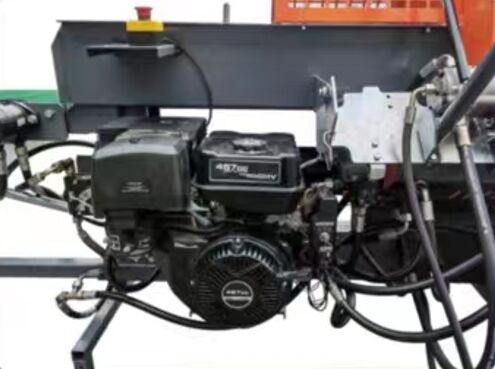

It's powered by a 14hp Petrol E-Start Engine by default, and can be customized with different brands motor on request. The chainsaw capacity goes up to 350mm. After cutting, the hydraulic log splitting system can handle log up to 360mm in diameter and 620mm in length. The 4-way splitting wedge can split the log into 4 pieces efficiently, after which the height adjustable belt conveyor will delivery the split firewood to the end.

With the heavy duty tow bar and  big pneumatic tires, the wood processor can be maneuvered around easily.

Power 14hp Petrol + E-start
Max. Diameter (mm) 360
Max. Length (mm) 620
Chainsaw Motor 4000rpm
Chainsaw Capacity 350mm
Hydraulic Pump Diameter 4"
Wheel 18''
Packing Size (mm) 2280x910x1200
Weight (kg) 540
Loading QTY 40'  24
