185X100mm Cross Slide Table Compound Table BM30201

SKU: BM30201
Price:
We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price
Contact us

Description

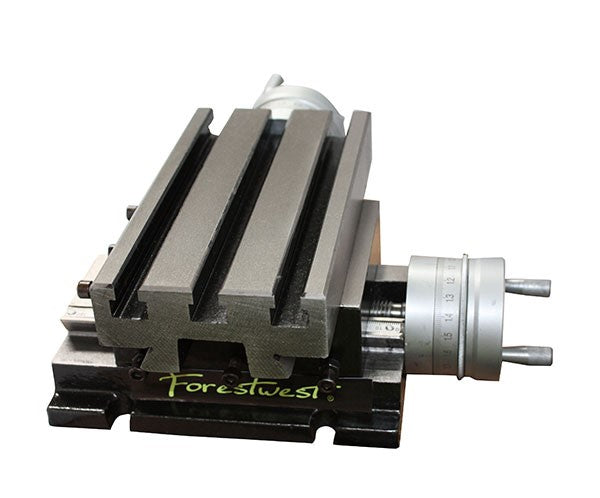

This BM30201 Cross Slide Table has a 185*100mm table, with a 80mm travel in X axis and 70mm travel in Y axis. This compound table is well machined, and the travel is smooth and accurate, it enables every vice to slide at two directions. This is a precision model, the dial indexed handle in 0.01mm graduation.

This cross slide table is ideal for repetitive multi axis work, it will highly reduce the set up time. The construction is sturdy and suitable for heavy duty work.

185x100mm Compound Table Features:

  • Sturdy construction for heavy duty work

  • Precise and smooth sliding action, sliding range X 85mm* Y 70mm

  • A 185*100mm solid table

  • Accurate sliding, 0.01mm Graduation

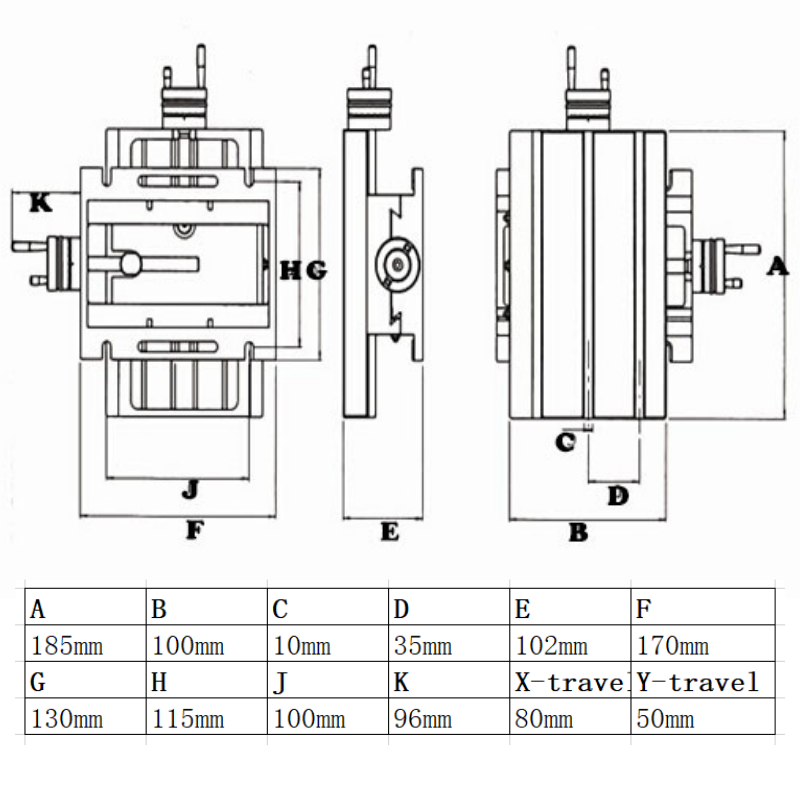

    Specifications:

    Model

    185X100mm Cross Slide Table With Fixed Base BM30201
    Table size(mm) 185*100
    X-travel(mm) 85
    Y-travel(mm) 70
    Packing size(mm) 280*280*170
    Graduation(mm) 0.01
    N.W./G.W(KG) 10.5/11
