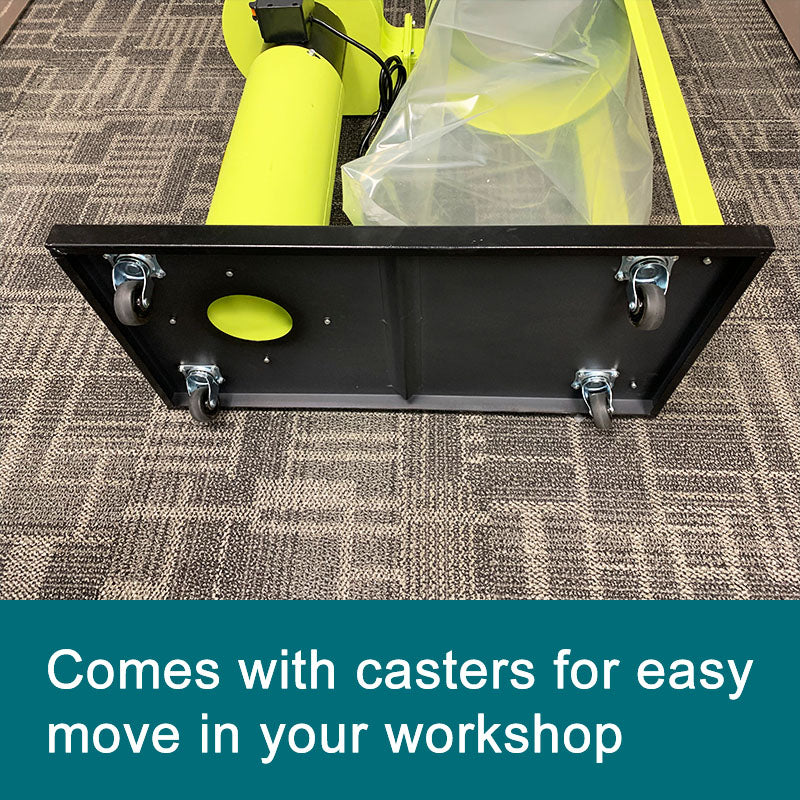

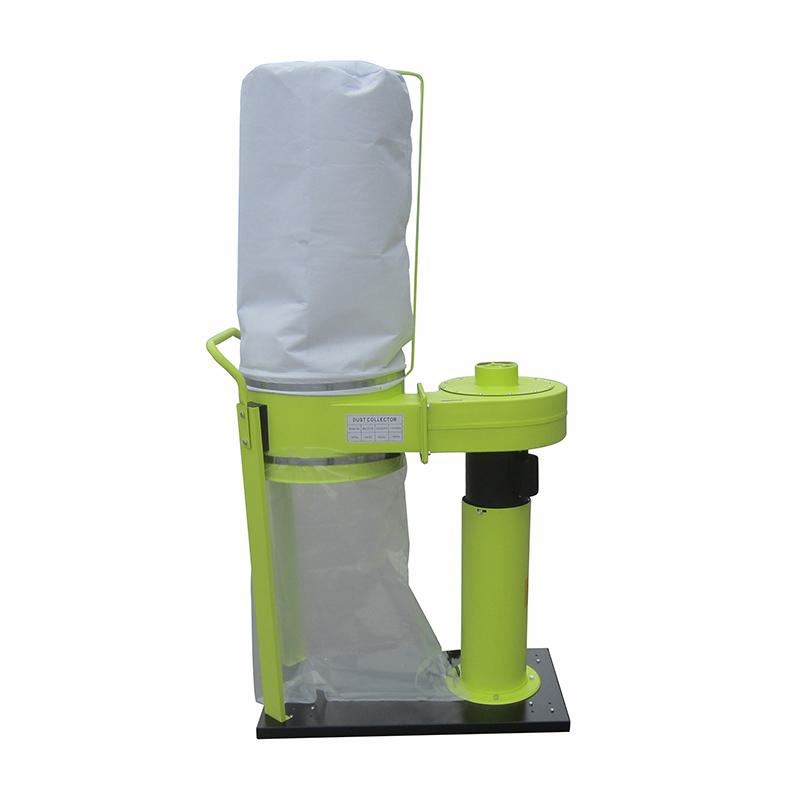

An economical extractor for small home workshop use. The 9" diameter impeller is capable of removing dust from a single machine at any one time creating a normal volume of dust - such as a table saw, bandsaw, sanders, and lathes. It comes standard on a base with casters for easy portability, as well as a needle felt filter bag and plastic collector bag. This extractor has found its way into thousands of workshops around Canada due to its great value-for-money and reliability.
Features:

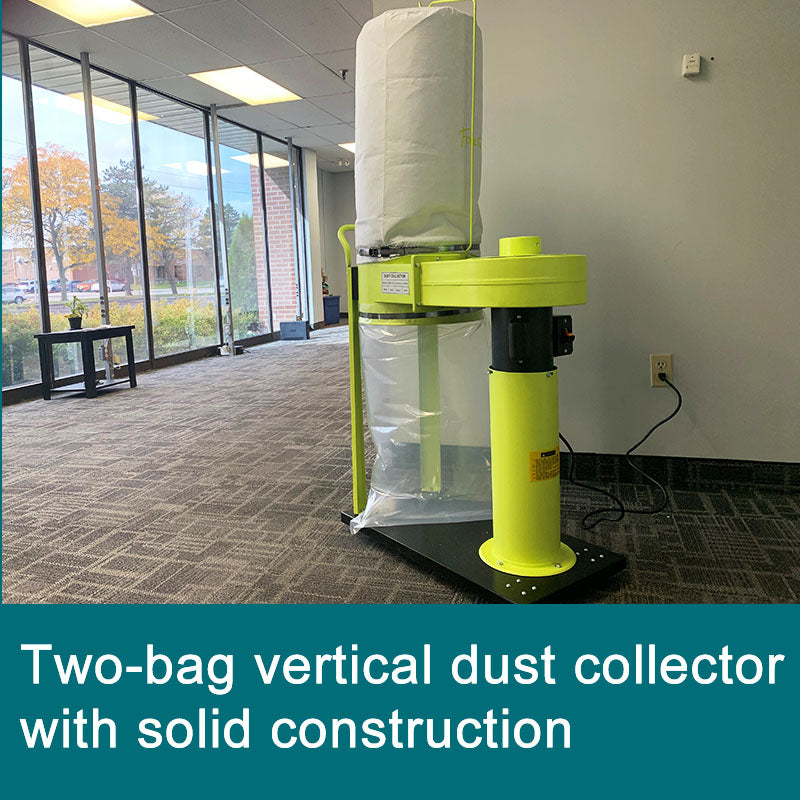

- Two-bag vertical dust collector.

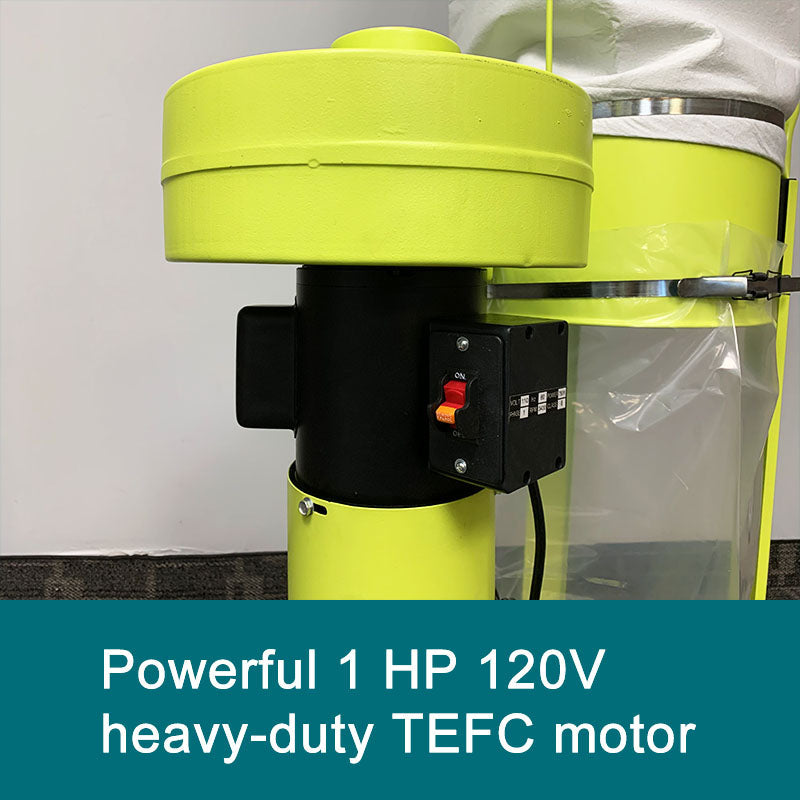

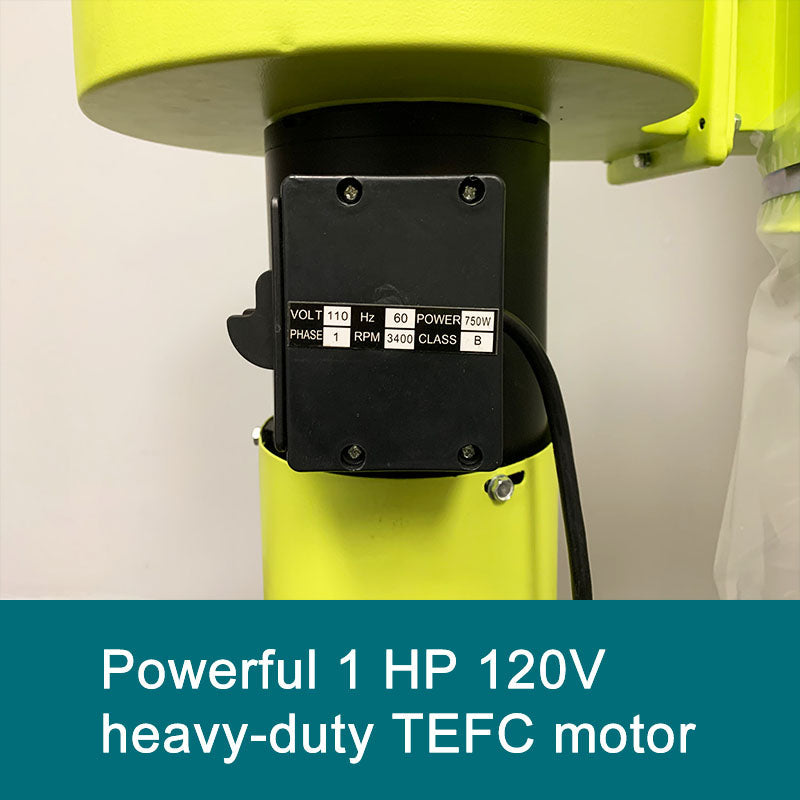

- Powerful 1 HP 120V heavy-duty TEFC motor and solid construction to effectively handle the collection of wood chips and sawdust.

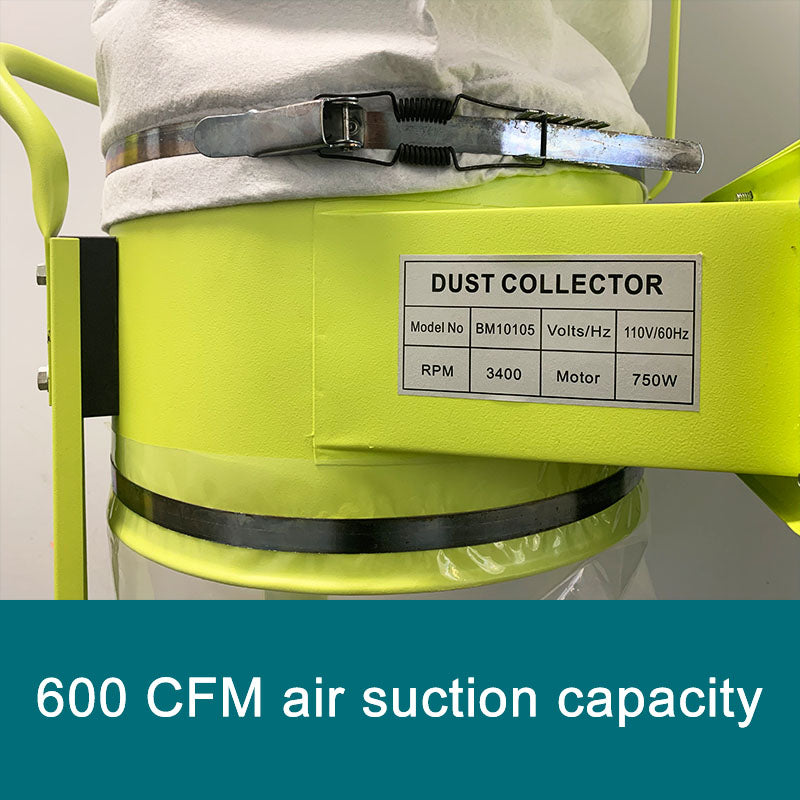

- 600 CFM air suction capacity.

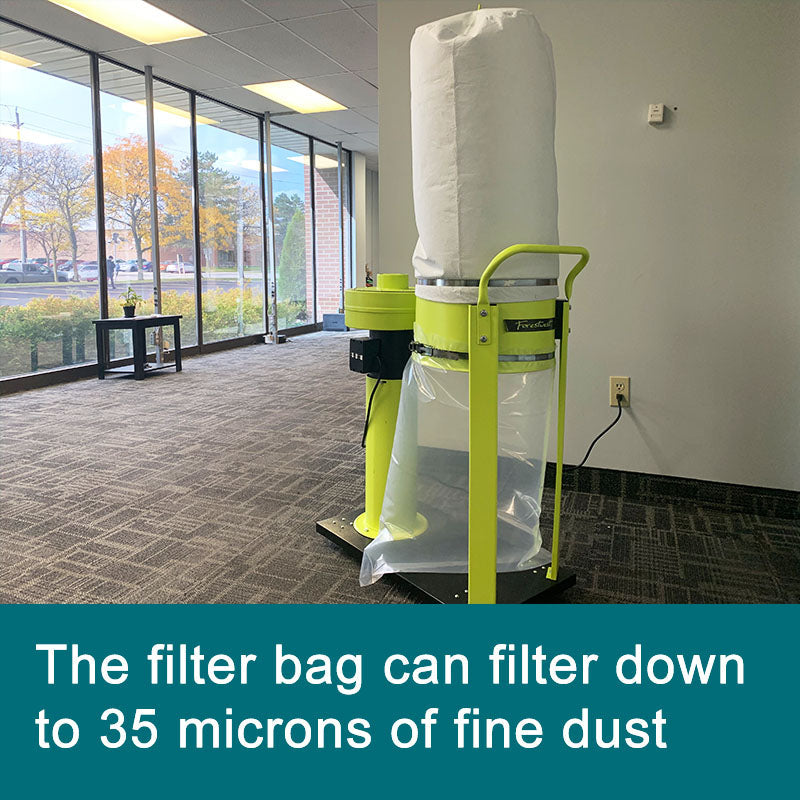

- The filter bag can filter down to 35 microns of fine dust.
Specifications:
| Model |
BM10105 |
| Motor |
1HP, 110V, TEFC |
| Air Flow |
600CFM |
| Static Pressure (Inch of Water) |
4" |
| Fan Diameter |
9" |
| Inlet Diameter |
1 x 4" |
| Bag Diameter |
14-5/8" |
| Bag Height |
25-1/4" |
| Bag Capacity |
57L (2CF/ 15Gal) |
| Net Weight/ Gross Weight |
66 lbs/ 78 lbs |
| Assembled Size |
26" x 17" x 62" |
| Packing Size |
30" x 18" x 19"
|
| Warranty |
1 Year |
