BM10103 1HP 600CFM Dust Collector

SKU: BM10103

We only can supply wholesalers.
Contact us with your detailed demand, we will quote you our price

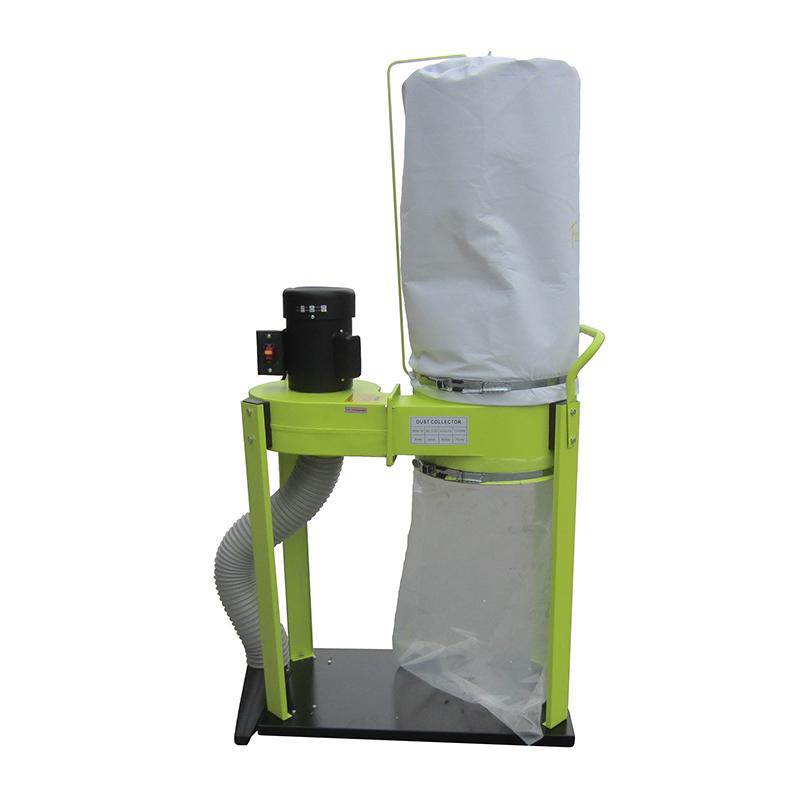

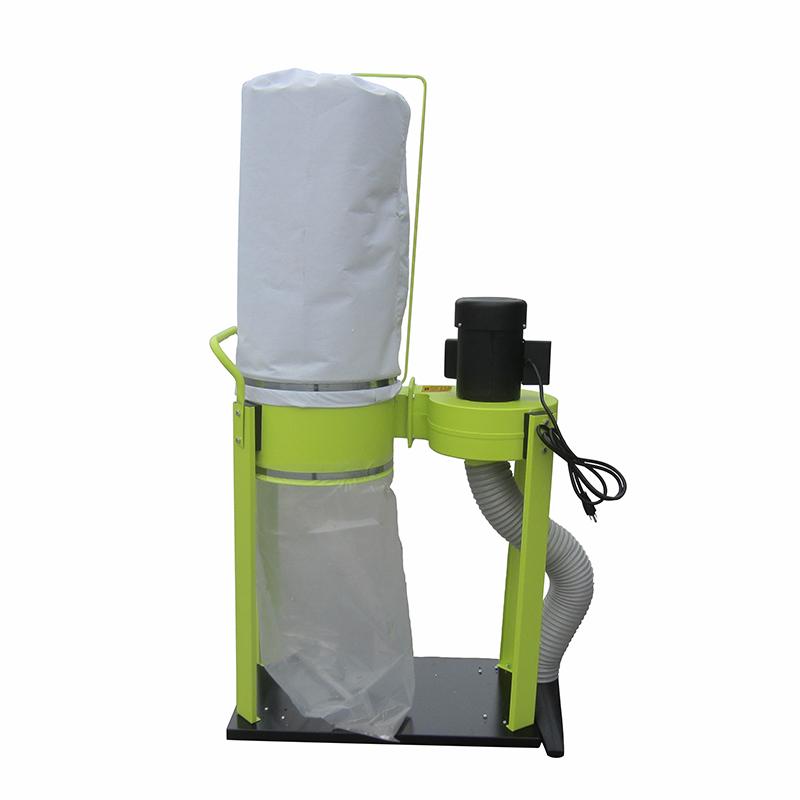

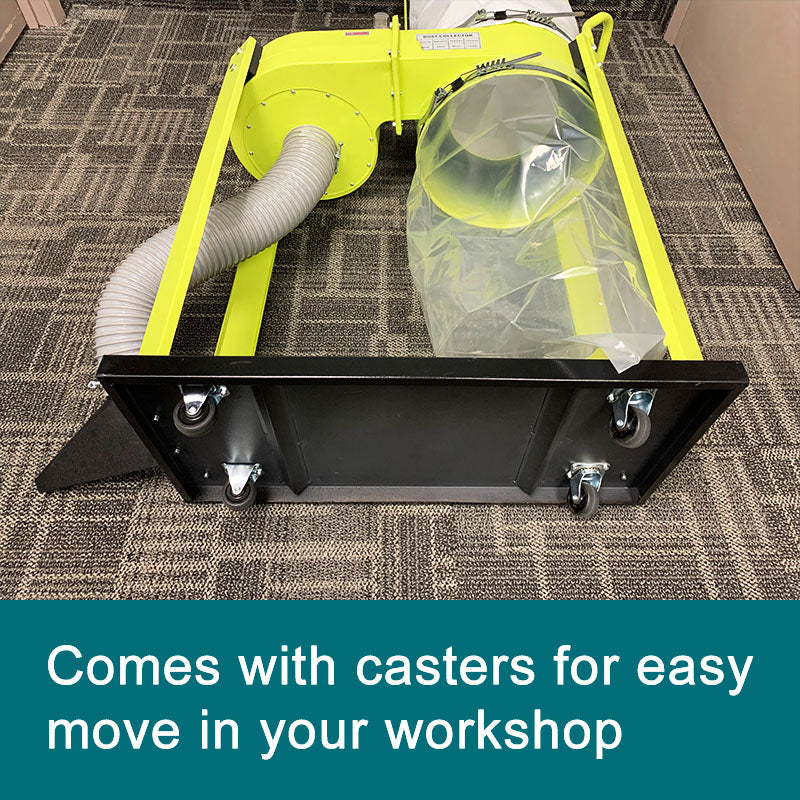

An economical extractor for small home workshop use. The 9" diameter impeller is capable of removing dust from a single machine at any one time creating a normal volume of dust - such as a table saw, bandsaw, sanders, and lathes. It comes standard on a base with casters for easy portability, as well as a needle felt filter bag and plastic collector bag. This extractor has found its way into thousands of workshops around Canada due to its great value-for-money and reliability.

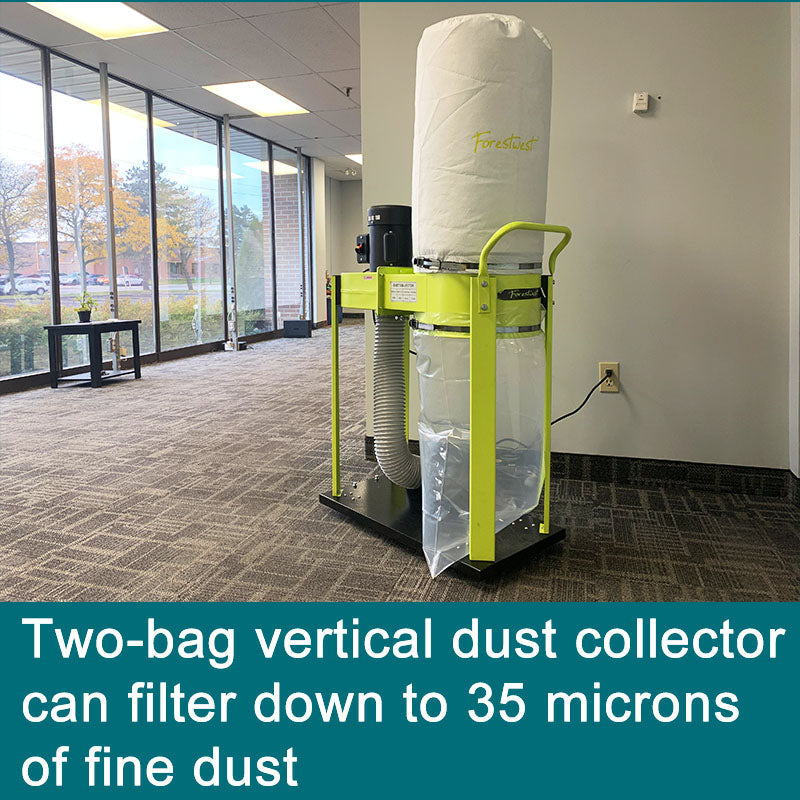

  • Two-bag vertical dust collector.

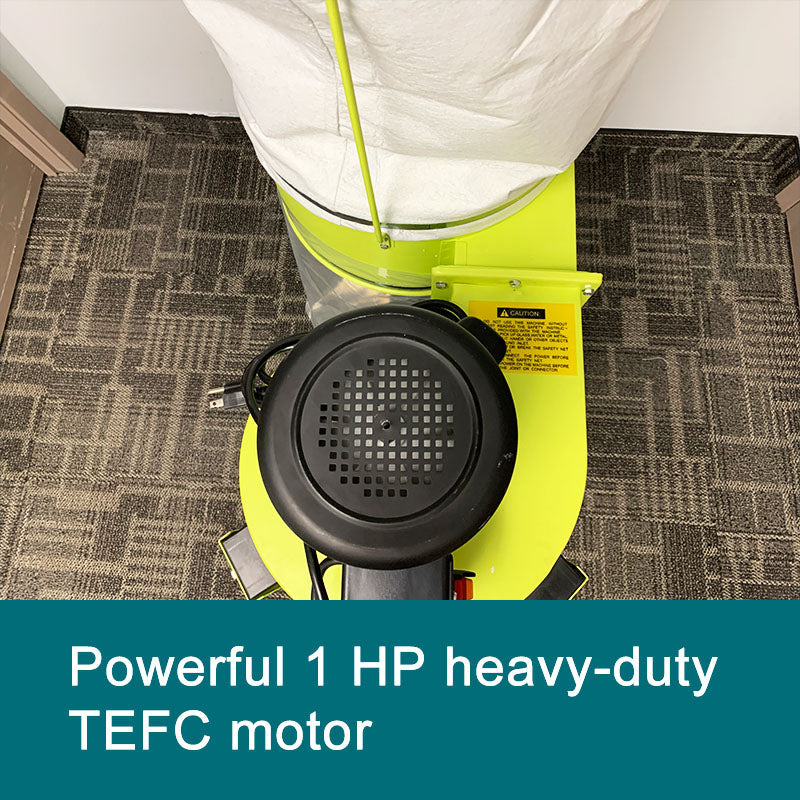

  • Powerful 1 HP heavy-duty TEFC motor and solid construction to effectively handle the collection of wood chips and sawdust.

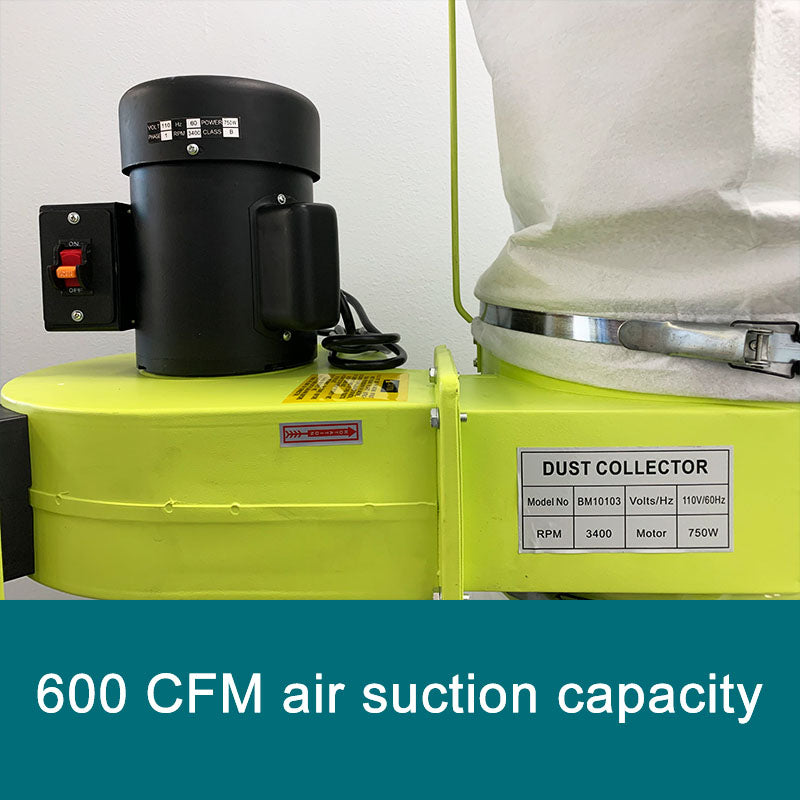

  • 600 CFM air suction capacity.
  • The filter bag can filter down to 35 microns of fine dust.

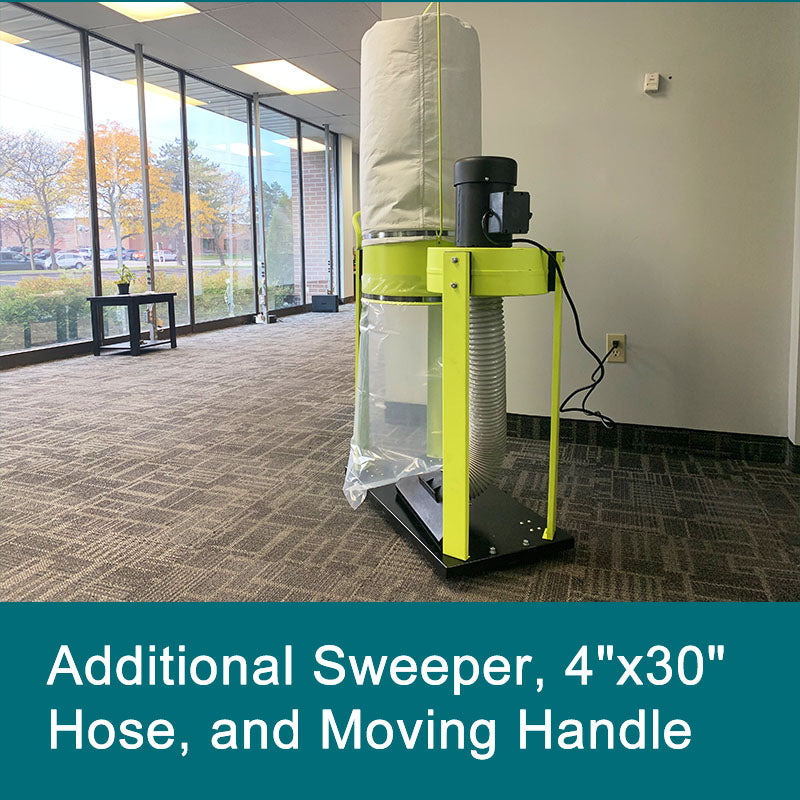

  • Additional Sweeper, 4"x30" Hose, and Moving Handle.


Model  BM10103
Motor  1HP, 110V, TEFC
Air Flow 600CFM
Static Pressure (Inch of Water)  4"
Fan Diameter 9"
Inlet Diameter 1 x 4"
Bag Diameter 14-5/8"
Bag Height 25-1/4"
Bag Capacity 57L (2CF/ 15Gal)
Net Weight/ Gross Weight  66 lbs/ 78 lbs
Assembled Size  26" x 17" x 62"
Packing Size  30" x 18" x 19"
Warranty 1 Year
