Description

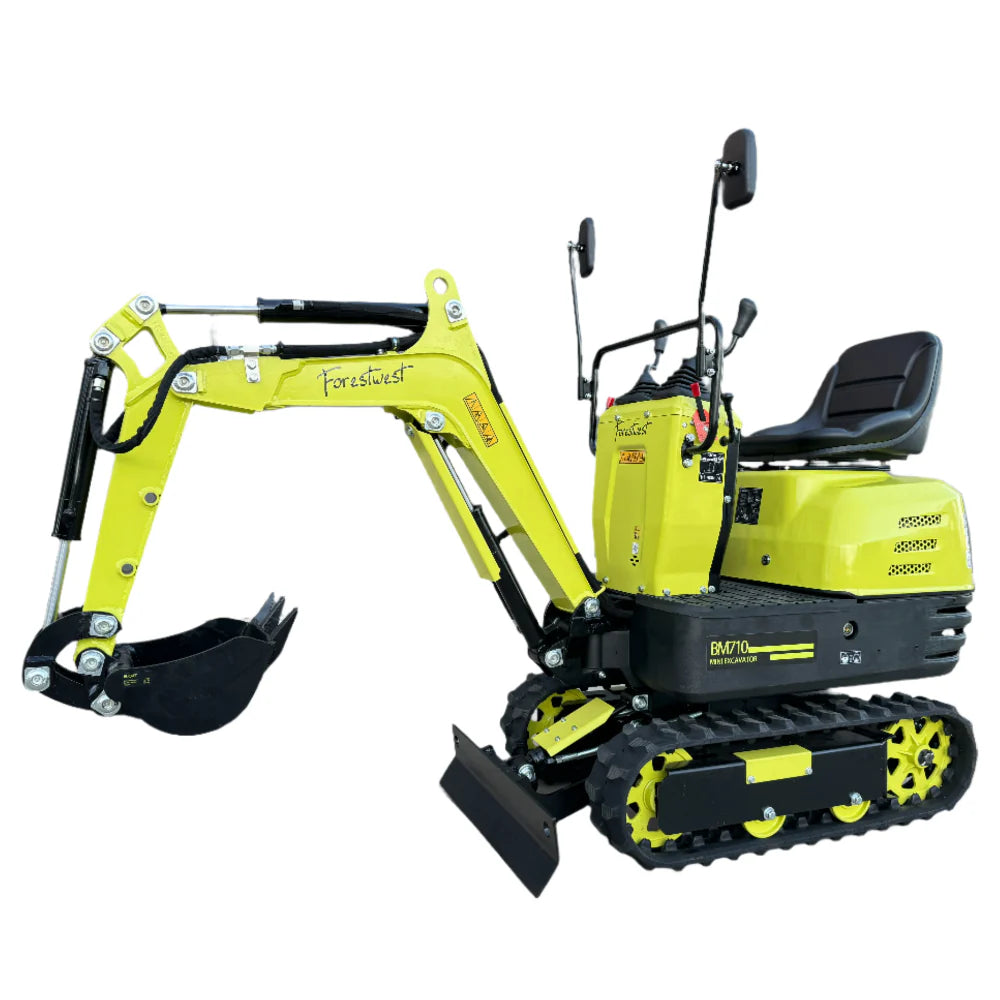

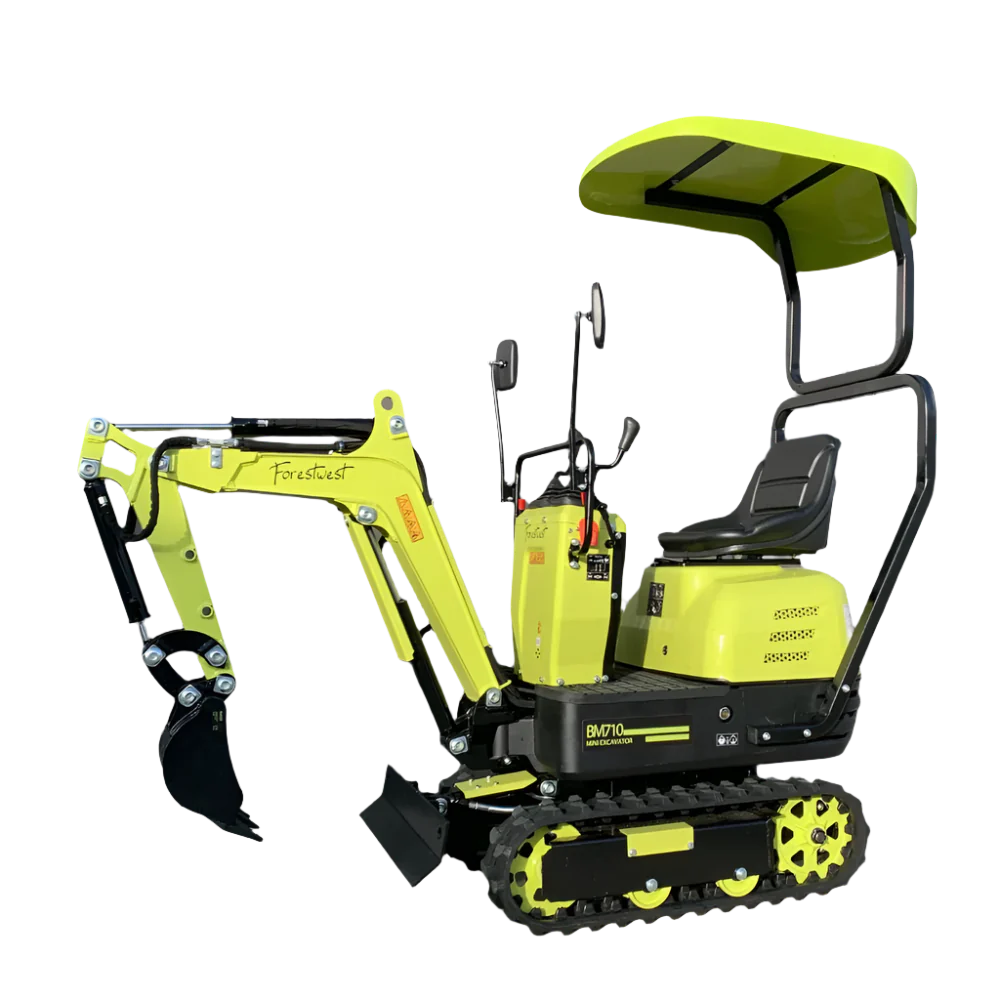

Mini Excavator - Featuring a 306cc high-torque engine with electric start, making it easy to start and powerful to use. When equipped with a bucket, the digging force can reach 8kN. This mini excavator is compact in size but suitable for heavy duty usage. Forestwest also offers other useful attachments, including a thumb and claw kit, a grading bucket, a pair of pallet forks, a canopy and a rake stick.

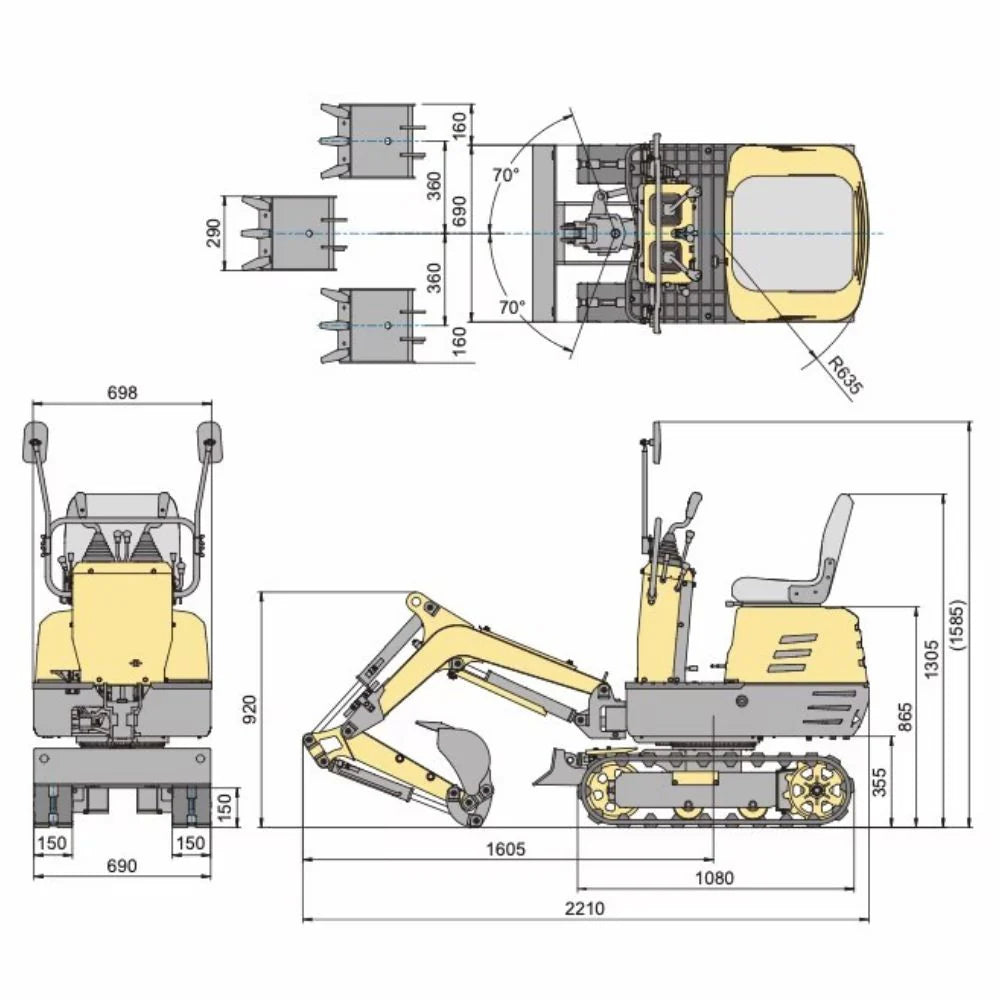

Specifications
| Model | 0.6T Mini Excavator BM710 |
|---|---|
| Engine | 306cc 10hp Petrol engine with E-start |

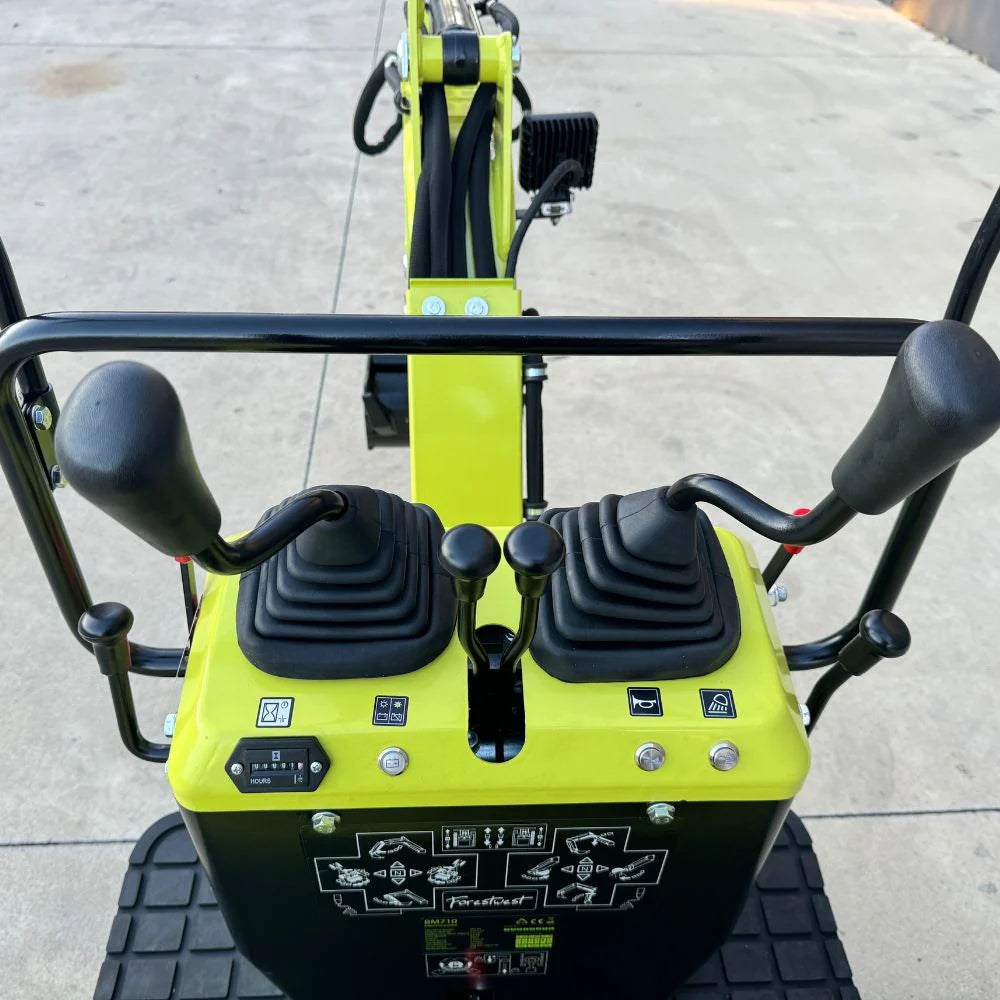

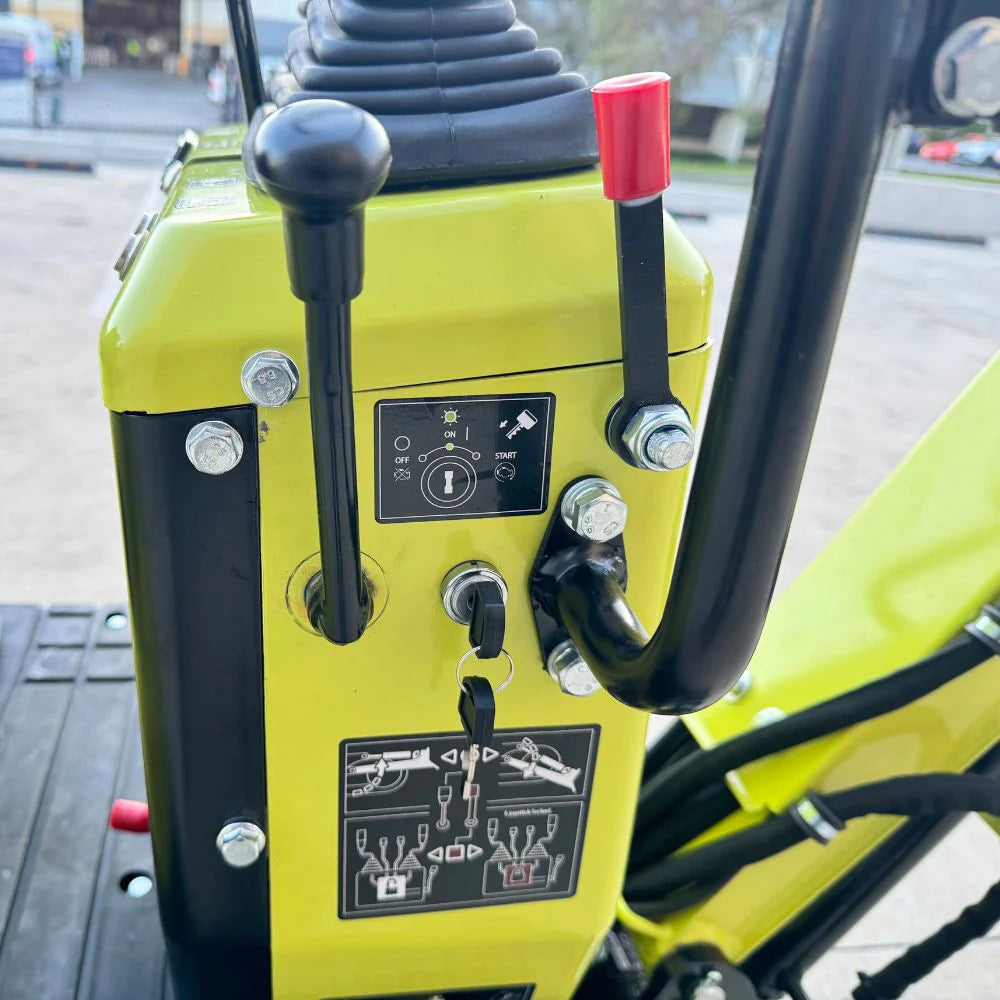

| Starting | Key-type Starter Switch and Shutdown |
| Operating Weight | 562kg |
| Bucket Capacity | 0.011 cubic meter |
| Bucket Width | 290mm |
| Digging Force (Arm) | 4.75 kN |
| Digging Force (Bucket) | 8 kN |
| Travel Speed | 1.7 km/h |
| Traction Force | 4.36 kN |
| Swing Speed | 9.3 rpm |
| Gradeability |
15° |
| Ground Contact Pressure | 26.3 kPa |
| Boom Swing | Left 70° / Right 70° |
| Track Width | 150mm |
| Track Shoe Type | Rubber Crawler |
| Pump Capacity | 2x 9 L/min |
| Hydraulic Reservoir | 12 L |
| Hydraulic Pressure | 17.5 Mpa |

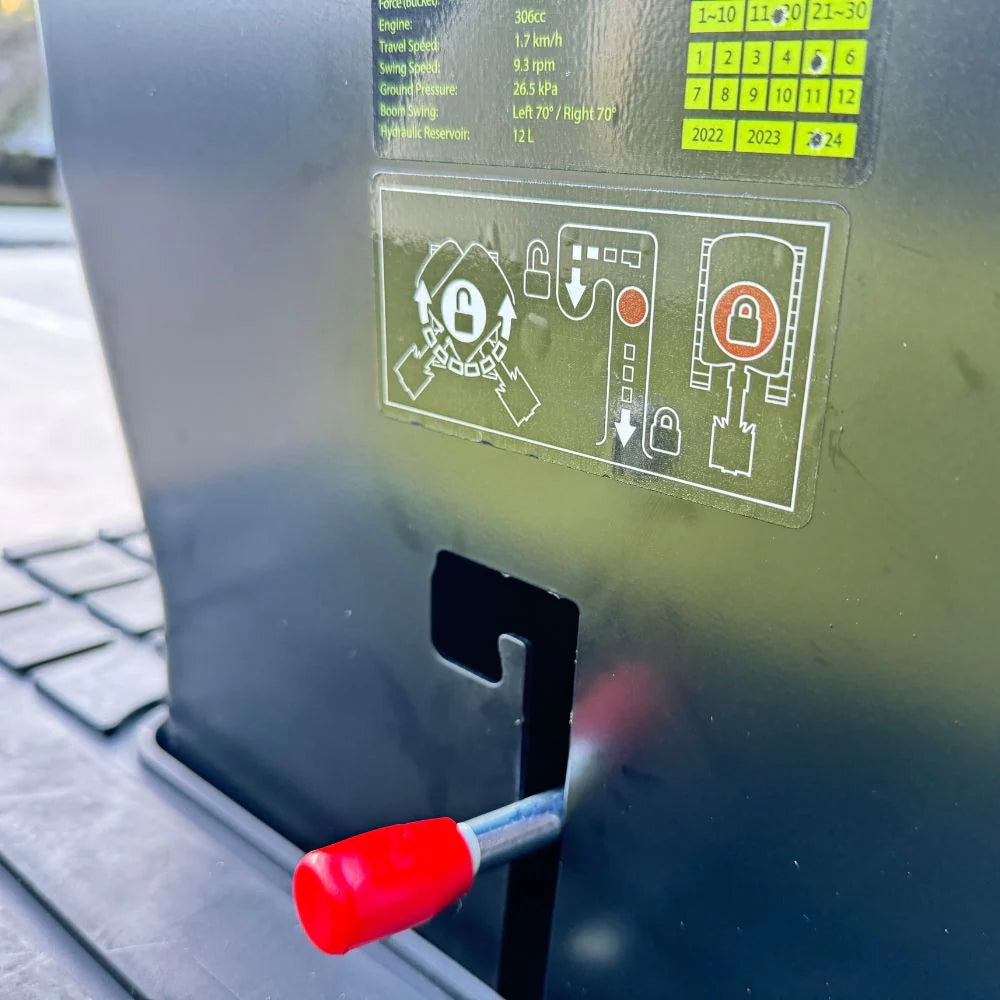

| Parking Brake | Hydraulic Lock |
| Sound Pressure level at the operator's station | 82.5dB |
| Vibration Value Arm | 2.17m/s² |
| Vibration Value Whole Body | 7.65m/s² |
| Packing Size (LxWxH) | 2266x735x1260mm |
| N.W./G.W. | 562/627kg |
